Easy and fast installation prefabricated bathroom units modular bathroom pods


Availability:

Quantity:

Inquire Add to Basket

Model:
BUA1516/BUA1517/1518

Prefab bathroom pod is a complete unit including every parts such as ceiling, wall, floor and sanitary ware. The ceiling, floor and walls are made of SMC(sheeting molding compound). It's high strength and light weight, been call aerial materials, usually used in airplane luggage and cabinets. The floor is one-step mold by press with high temperature and pressure. It's one-pieces with watertight performance.

modular bathroom pods Bathroom Pods Modular Bathroom prefabricated bathroom units Bathroom Units prefabricated bathroom

Product Description

Dimensions	Internal	External
Width	1500mm	1650mm
Length	1600mm/1700mm/1800mm	1750mm/1850mm/1950mm
Height	2000mm/2200mm	2500mm/2650mm
Available	2.40㎡/2.55㎡/2.70㎡
Weight	≤240kg
Application Field	Hotel, Apartment, Real Estate, Modular House, Hospital, etc.
Shipping Info	42 sets flat packing/40 HC 8 sets assembled/40 HC

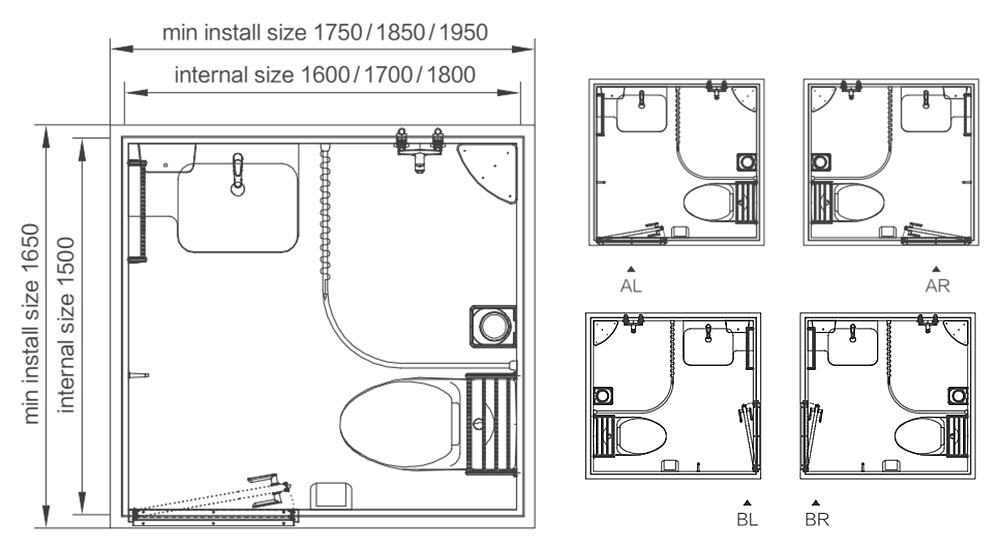

BUA1516-CAD

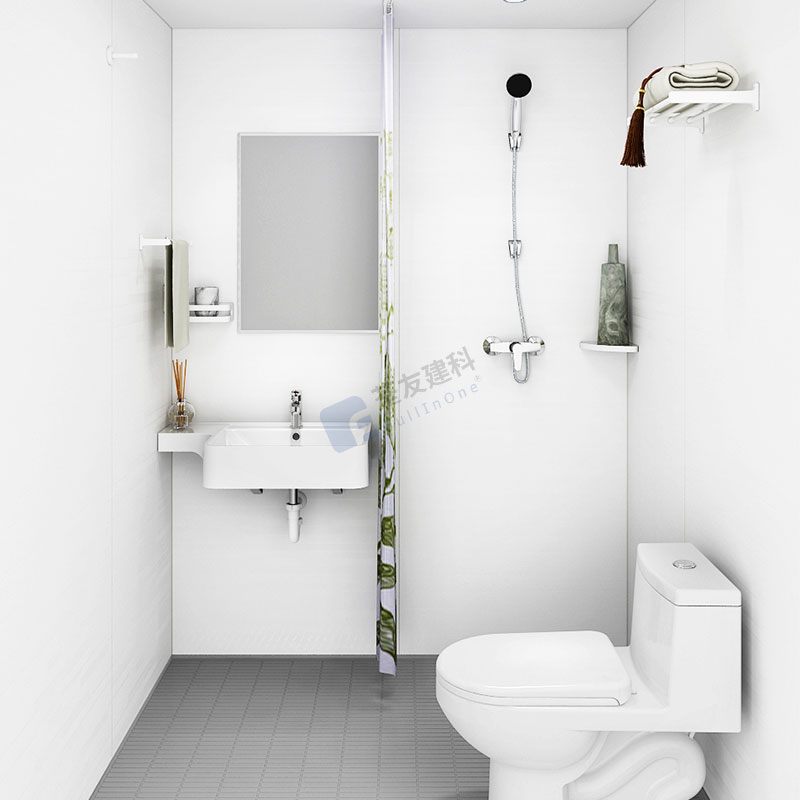

bathroom-unit-1

BUA1516/BUA1517/BUA1518
	Name	Specification
Main parts	SMC mold floor	1500x1600/1700/1800mm
	SMC mold walls	H=2000/2200mm
	SMC mold ceiling	1500x1600/1700/1800mm
	door	700x2000mm
	floor drain
Washing	SMC mold basin	L=600mm
	basin faucet	single handle single holes
	mirror	500x700mm
	towel rail	L=400mm, ABS
	soap stand	ABS
WC	toilet	top press
WC	paper holder	ABS
Shower	shower faucet	single handle double holes
	rectanglular rack	ABS
	water retaining strip
	shower towel rail	L=400mm, ABS
	shower curtain (rod)	L=1400mm
Appliance	LED light	4000k
	exhaust fan	one-piece exhaust fan
	socket
Installation parts	fixing frame sets
	watersupply pipes	length 150mm higher than the bathroom wall
	sewage pipes
	sealant
